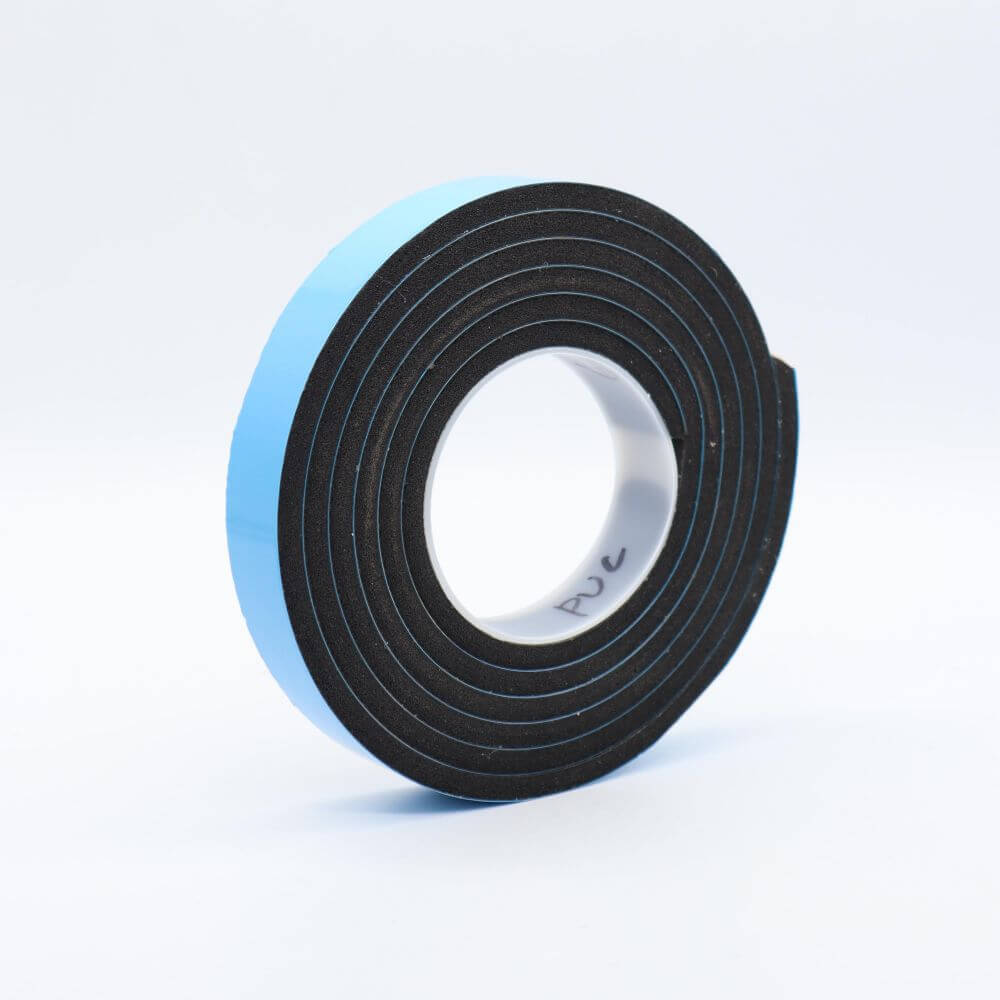

Our black foam tape single sided is made of a strong, high-density foam glazing tape. It acts as a Foam Gasket to stop air and water. It is the best Adhesive-backed foam weatherstripping for any building project.
We make our foam single sided tape from the best materials. The foam is Closed-cell PVC (Polyvinyl Chloride). This is a very tough plastic. It is better than EPDM or Neoprene for many jobs. The glue is a special Acrylic (Adhesive). It is much stronger than a plain Rubber (Adhesive). This tape is a better choice than Butyl or Silicone for creating a fast, clean compression seal with Spacers and Setting Block parts. We also offer other kinds of high density foam strips for different jobs.
This black foam tape single sided is a great structural glazing tape. It has amazing UV Resistance and is a weather-resistant glazing seal. This non-staining glazing tape will not harm frames.
TOTAL THICKNESS | LENGTH | RELEASE FILM | FOAM | ADHESIVE | FLAMMABILITY |
|---|---|---|---|---|---|
1.6MM-12.7MM (Customizable) |
6,9,12,18MM (Custom roll lengths) |
Blue release film |
PVC Foam |
Acrylic |
UL94 HBF/HF-1/V-0, FMVSS 302 |
Foam Density | Shore 00 Hardness | Tensile Strength | Force to Compress | Elongation | 30% Compression set |
|---|---|---|---|---|---|
95±10 kg/m3 |
10±5° |
≥150kPa |
≥2kPa |
≥200% |
≤6% |
This single sided adhesive foam tape has a high-tack Adhesive. It sticks to Aluminum, Vinyl, and wood Window Frame parts.
The tape is a closed-cell foam glazing seal. This means water and air can’t get through. It is the perfect waterproofing foam tape for windows.
The soft foam is a cushioning tape for glass transport and installation. It stops the Glass Pane from breaking. It is great for vibration damping for glass panels.
This black foam tape for glass gives you a clean, straight line. It looks much better than messy caulk.
For Windows, Doors, and Fenestration:
This is the best window installation foam tape you can buy. Use it as a door glass setting tape or for patio door weatherstripping foam. It is a great IG unit (Insulated Glass Unit) setting tape. Our single sided glazing tape is perfect for commercial glazing foam tape jobs on big buildings and for residential window sealing. Use it to install a Door Lite or a Muntin Bar.
For Storefronts and Big Projects:
For big jobs, you need a tape you can trust. This is the best storefront glass installation tape. It is also a top curtain wall glazing seal. It works well for skylight sealing foam strip jobs and glass partition foam tape needs inside buildings. For custom work, it can be used as architectural glazing solutions.
For Special Uses:
This tape is not just for windows. It is a great HVAC panel sealing tape. It is a good marine glazing tape for boats and an RV window sealing tape. Use it on metal building sealing tape jobs or even for greenhouse panel sealing tape. It is also an effective automotive glass mounting tape. When you need the best seal, you need our single sided adhesive foam tape.
PVC foam tape is highly versatile and primarily used for sealing (against water, air, dust, light), gasketing, cushioning, vibration damping, and thermal/acoustic insulation. Common applications include window and door glazing, HVAC systems, automotive components, appliance manufacturing, and die-cut gaskets for various industrial equipment.
Our standard PVC foam tapes generally perform well in a temperature range of approximately -20°C to +80°C. For specific temperature requirements or extreme conditions, please consult with us as we may have specialized formulations or can guide you on suitability. (You'll need to insert your actual typical temperature range here)
The closed-cell structure is critical. It prevents the absorption of water, air, and dust, making it an excellent material for sealing and gasketing. It also contributes to the foam's good compression recovery, cushioning properties, and thermal/acoustic insulation capabilities.
Many of our PVC foam tape formulations possess inherent flame-retardant properties. Specific grades can meet industry standards like UL 94 (e.g., HF-1, V-0). Please discuss your specific flame retardancy requirements with our technical team.
Yes. While our standard stock may include single-sided adhesive PVC foam tape, we can manufacture double-sided (double-coated) PVC foam tape by request to meet your specific bonding and assembly needs.
To provide an accurate quote, please share details about your application, required dimensions (thickness, width, length), density or firmness needed, adhesive requirements (single or double-sided), quantity, and any specific performance criteria (e.g., temperature resistance, flame retardancy, certifications).
