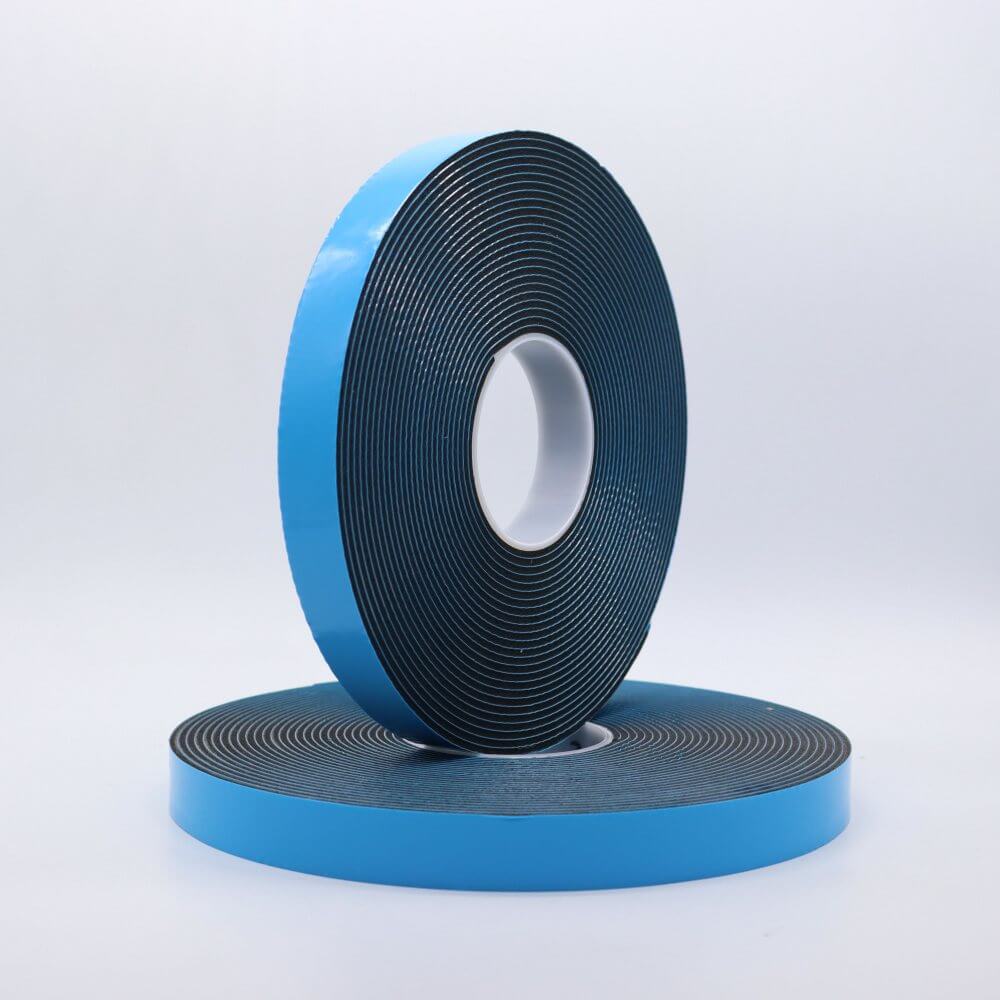

This window glazing tape guarantees an ideal seal and premium stamina for modern-day construction.It is made to provide premium efficiency in every application, supplying significant advantages over conventional bonding techniques.
When your task requires a reliable, permanent bond, our premium double sided glazing tape is the tried and tested service. This high-performance architectural glazing tape is particularly engineered for demanding applications, providing an effective, long-lasting, and cost-efficient alternative to messy liquid sealers and slow-moving mechanical fasteners. As a leading selection for experts, this window glazing tape guarantees an ideal seal and premium stamina for modern-day construction.
TOTAL THICKNESS | LENGTH | RELEASE FILM | FOAM | ADHESIVE | FLAMMABILITY |
|---|---|---|---|---|---|
1.6MM-12.7MM (Customizable) |
6,9,12,18MM (Custom roll lengths) |
Blue release film |
PVC Foam |
Acrylic |
UL94 HBF/HF-1/V-0, FMVSS 302 |
Foam Density | Shore 00 Hardness | Tensile Strength | Force to Compress | Elongation | 180° Peel Strength |
|---|---|---|---|---|---|
380±50kg/m³ |
80±10° |
≥800kPa |
≥50kPa |
≥70% |
0.82N/mm |
Home window glazing tape holds up against harsh climate, UV radiation, temperature changes, and chemical exposure. The closed-cell PVC foam creates a long-term, watertight seal you can depend upon for several years.
The adaptable foam core of our structural glazing tape conforms flawlessly to bent, tilted, or uneven surfaces where inflexible fasteners fall short. It bonds safely to glass, metal, plastics, and timber.
This glazing tape removes the need for pricey customized equipment, lowers product waste, and supplies a higher-performance bond at a lower general expense than conventional mechanical dealing with techniques.
Attain a smooth, unseen bond that boosts modern-day architectural visual appeals. This dual sided glazing tape hides behind the framework, offering a clean appearance devoid of screws or untidy sealant lines.
The perfect service for a variety of essential applications in building and construction, manufacturing, and transport.
PVC foam tape is highly versatile and primarily used for sealing (against water, air, dust, light), gasketing, cushioning, vibration damping, and thermal/acoustic insulation. Common applications include window and door glazing, HVAC systems, automotive components, appliance manufacturing, and die-cut gaskets for various industrial equipment.
Our standard PVC foam tapes generally perform well in a temperature range of approximately -20°C to +80°C. For specific temperature requirements or extreme conditions, please consult with us as we may have specialized formulations or can guide you on suitability. (You'll need to insert your actual typical temperature range here)
The closed-cell structure is critical. It prevents the absorption of water, air, and dust, making it an excellent material for sealing and gasketing. It also contributes to the foam's good compression recovery, cushioning properties, and thermal/acoustic insulation capabilities.
Many of our PVC foam tape formulations possess inherent flame-retardant properties. Specific grades can meet industry standards like UL 94 (e.g., HF-1, V-0). Please discuss your specific flame retardancy requirements with our technical team.
Yes. While our standard stock may include single-sided adhesive PVC foam tape, we can manufacture double-sided (double-coated) PVC foam tape by request to meet your specific bonding and assembly needs.
To provide an accurate quote, please share details about your application, required dimensions (thickness, width, length), density or firmness needed, adhesive requirements (single or double-sided), quantity, and any specific performance criteria (e.g., temperature resistance, flame retardancy, certifications).
